Products

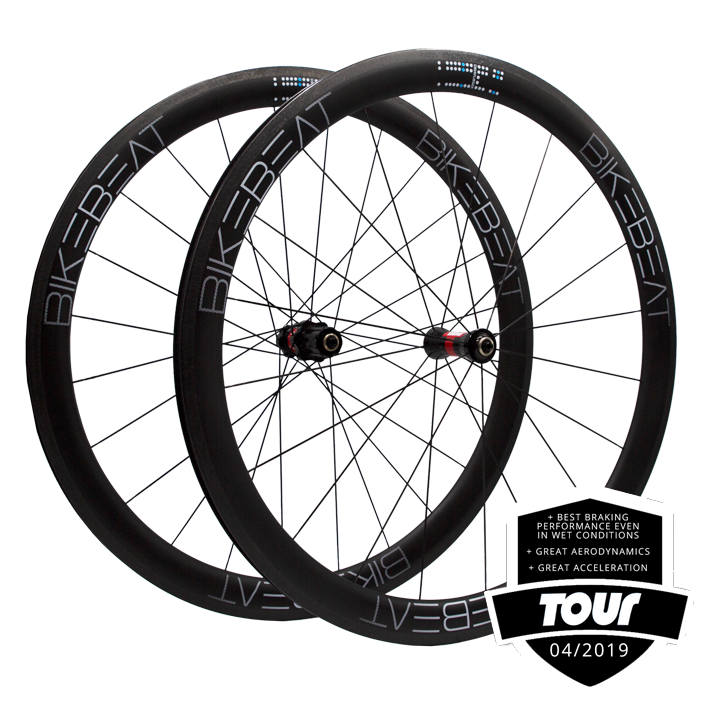

ÜBERFLIEGER

Our new Überflieger wheelset makes every road bike a highlight. Based on an Airbus patent for aerospace, we have further developed the process of machine braiding to use it for cycling. Our unidirectional braiding makes for a unique, non-duplicable design. The result of years of development, is a very light 45mm clincher wheelset with an outstanding price / performance ratio.

Our rims are not only developed and designed in Germany, but also 100% made in Germany. The outstanding aerodynamics, stability and highest performance values are supported by lightweight DT Swiss 240s Straightpull hubs and Aero spokes from Sapim.

Application:

Road, Cross / Gravel

Decal color:

White or Black

Wheel size:

28″

Rim material:

Carbon

Tire type:

Wire-/foldable tires

Tire width:

min. 23mm / max. 33mm

Number of spokes:

20 (F), 24 (R)

Brake system:

Rim brake

Brake pads:

incl. 4x SwissStop brake pad
Road FLASH EVO BLACK PRINCE

Rim tape:

incl. 2x Schwalbe PU 18mm

Tubeless system:

Tubeless ready

Weight:

1390 Gr.

Cassette body:

Shimano/SRAM 10/11-speed or Campagnolo 9/10/11-speed

TG:

250° – This value reflects the heat resistance of the rim. More specifically, it means that the brake flank can endure up to 250 ° Celsius before the material gets tired.

Technical information

Rim

Type:
UD BikeBeat
Dimension (ETRTO):
17-622
Rim width inside:
17,7 mm
Rim width outside:
26,5 mm
Rim height:
45 mm
Rim material:
Carbon

Hubs

Typ:
DT Swiss 240s Straightpull
Axle:
5mm quick release
Cassette body:
Shimano/SRAM 10/11-speed or
Campagnolo 9/10/11-speed

Limits

Weight limit:
110 kg total weight (bike incl. rider)
Air pressure (max.):
9 bar (23 mm tire),
8 bar (25 mm),
[see recommended tire width:
7,5 bar (28 mm)]
Recommended tire width:

23-25 mm
[28mm: no sense from aerodynamic view; so we recommend 23 o 25mm tire width]

Recommended brake pads:
  • SwissStop Flash Pro Black Prince (incl. into delivery)
  • SwissStop Flash Pro Yellow King

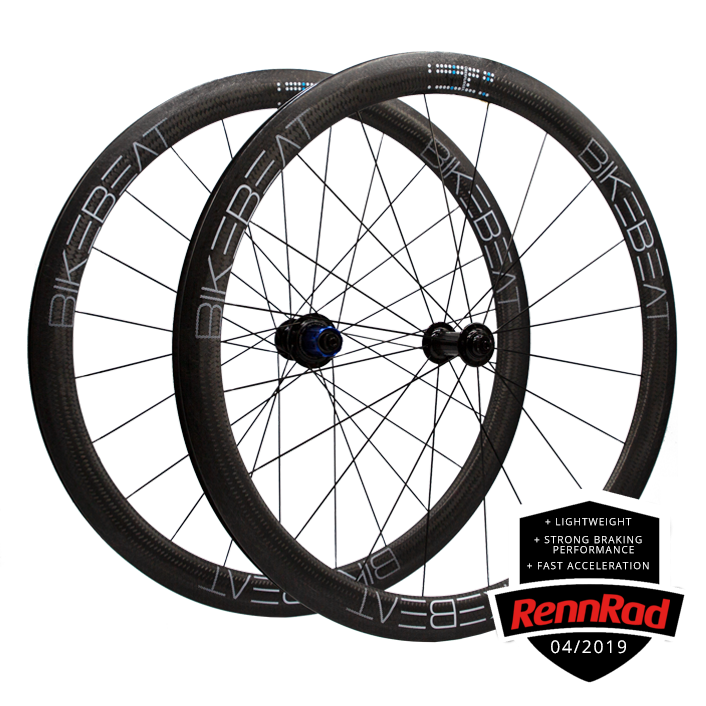

ÜBERFLIEGERPro

The advancement of the Überflieger! In the Pro variant, we combine state-of-the-art manufacturing processes of our patented, unidirectional braiding process with the pure, aesthetic appearance of machine-braided carbon. No complaining paint, no necessary “embellishments” are used in this wheelset. Purist and unique!

The wheelset supports athletes in a variety of situations, all triathlon distances, breakaway groups, sprints and mountainous finishings. Aerodynamics, stiffness and weight speak for themselves. Supplemented by towering hubs made by TUNE, the ÜberfliegerPro impresses in terms of aerodynamics, rigidity and absolute light weight.

Application:

Road, Cross / Gravel

Wheel size:

28″

Rim material:

Carbon

Tire type:

Wire /foldable tires

Tire width:

min. 23mm / max. 33mm

Number of spokes:

20 (F), 24 (R)

Brake system:

Rim brake

Brake pads:

incl. 4x SwissStop brake pad
Road FLASH EVO BLACK PRINCE

Rim tape:

incl. 2x Schwalbe PU 18mm

Tubeless system:

Tubeless ready

Weight:

1290 Gr.

Cassette body:

Shimano/SRAM 10/11-speed, Campagnolo 9/10/11-speed or SRAM XD

TG:

250° – This value reflects the heat resistance of the rim. More specifically, it means that the brake flank can endure up to 250 ° Celsius before the material gets tired.

Technical information

Rim

Type:
UD BikeBeat Pro
Dimension (ETRTO):
17-622
Rim width inside:
17,7 mm
Rim width outside:
26,5 mm
Rim height:
45 mm
Rim material:
Carbon

Hubs

Type:
TUNE MIG70/MAG170
Axle system:
5mm quick release
Cassette body:
Shimano/SRAM 10/11-speed or
Campagnolo 9/10/11-speed

Limits:

Weight limit:
110 kg total weight (bike incl. rider)
Air pressure (max.):
9 bar (23 mm tires),
8 bar (25 mm),
[see recommended tire width:
7,5 bar (28 mm)]
Recommended tire width:
23-25 mm
[28mm: no sense from aerodynamic view; so we recommend 23 o 25mm tire width]
Recommended brake pads:
  • SwissStop Flash Pro Black Prince (incl. into delivery)
  • SwissStop Flash Pro Yellow King

ÜBERFLIEGERPrototyp

The final stage of the Überflieger series! All riders who are looking for something special can now stop their search. The prototype unites lightweight construction with a purist carbon look. Incredible 1190 grams (+ – 2-4%) brings the 45mm Clincher on the scale. For this very special wheelset we took the combination of SAPIM CX Super Spokes and the lightweight hubs by TUNE, MIG45 / MAG 150.

Application:

Road

Wheel size:

28″

Rim material:

Carbon

Tire type:

Wire /foldable tires

Tire width:

min. 23mm / max. 33mm

Number of spokes:

20 (F), 24 (R)

Brake system:

Rim brake

Brake pads:

incl. 4x SwissStop brake pad
Road FLASH EVO BLACK PRINCE

Rim tape:

incl. 2x Schwalbe PU 18mm

Tubeless system:

Tubeless ready

Weight:

1190 Gr.

Cassette body:

Shimano/SRAM 10/11-speed or
Campagnolo 9/10/11-speed

TG:

250° – This value reflects the heat resistance of the rim. More specifically, it means that the brake flank can endure up to 250 ° Celsius before the material gets tired.

Technical information

Rim

Type:
UD BikeBeat Pro
Dimension (ETRTO):
17-622
Rim width inside:
17,7 mm
Rim width outside:
26,5 mm
Rim height:
45 mm
Rim material:
Carbon

Hubs

Type:
TUNE MIG45/MAG150
Axle system:
5mm quick release
Cassette body:
Shimano/SRAM 10/11-speed or
Campagnolo 9/10/11-speed

Limits:

Weight limit:
90 kg total weight (bike incl. rider)
Air pressure (max.):
9 bar (23 mm tires),
8 bar (25 mm),
[see recommended tire width:
7,5 bar (28 mm)]
Recommended tire width:
23-25 mm
[28mm: no sense from aerodynamic view; so we recommend 23 o 25mm tire width]
Recommended brake pads:
  • SwissStop Flash Pro Black Prince (incl. into delivery)
  • SwissStop Flash Pro Yellow King
