Description

Finally the Überflieger DISC series is now complete. The Lite DISC version opens the entry into our carbon wheels range. As the big brothers, we rely on a machine braiding process based on an Airbus patent, which was originally developed for aerospace. Our unidirectional braiding provides a unique, non-duplicable design. The Lite version is the price / performance miracle and offers a robust wheelset with great weight for an unbeatable price.

Our rims are not only developed and designed in Germany, but also 100% made in Germany. The outstanding aerodynamics, stability and highest performance values are supported by DT Swiss 350 straightpull hubs and Aero spokes from Sapim.

Specs

Application:

MSRP:

Hubs:

Axle system:

Installation width:

Decal color:

Wheel size:

Dimension (ETRTO):

Rim width inside:

Rim width outside:

Rim material:

Tire type:

Tire width:

Number of spokes:

Brake system:

Brake mount:

Rim tape:

Tubeless-system:

Weight:

Weight limit:

Tire pressure(max.):

Cassette body:

Road, Cross, Gravel

1.299,- €

DT Swiss 350 Straightpull

12mm thru axle

F: 100mm / R: 142mm

White or black

28″

17-622

17,5mm

26,5mm

Carbon

Wire-/Foldable tires

min. 23mm / max. 33mm

24 (F), 24 (R)

DISC

Centerlock

incl. 2x Schwalbe PU 18mm

Tubeless ready

from 1.470 gr.

110 kg total weight

9 bar (23 mm),
8 bar (25 mm), 7,5 bar (28 mm)

Shimano/SRAM 10/11-speed, Campagnolo 9/10/11/12-speed or SRAM XDR

Description

Our new Überflieger DISC wheelset makes every road bike a highlight. Based on an Airbus patent for aerospace, we have further developed the process of machine braiding to use it for cycling. Our unidirectional braiding makes for a unique, non-duplicable design. The result of years of development, is a very light 45mm clincher wheelset with an outstanding price / performance ratio.

Our rims are not only developed and designed in Germany, but also 100% made in Germany. The outstanding aerodynamics, stability and highest performance values are supported by lightweight DT Swiss 240s DISC Straightpull hubs and Aero spokes from Sapim.

Specs

Application:

MSRP:

Hubs:

Axle system:

Installation width:

Decal color:

Wheel size:

Dimension (ETRTO):

Rim width inside:

Rim width outside:

Rim material:

Tire type:

Tire width:

Number of spokes:

Brake system:

Brake mount:

Rim tape:

Tubeless-system:

Weight:

Weight limit:

Tire pressure(max.):

Cassette body:

Road, Cross, Gravel

1.599,- €

DT Swiss 240S Straightpull

12mm thru axle

F: 100mm / R: 142mm

White or black

28″

17-622

17,5mm

26,5mm

Carbon

Wire-/Foldable tires

min. 23mm / max. 33mm

24 (VR), 24 (HR)

DISC

Centerlock

incl. 2x Schwalbe PU 18mm

Tubeless ready

from 1.420 gr.

110 kg total weight

9 bar (23 mm),
8 bar (25 mm), 7,5 bar (28 mm)

Shimano/SRAM 10/11-speed, Campagnolo 9/10/11/12-speed or SRAM XDR

Description

The advancement of the Überflieger DISC! In the Pro variant, we combine state-of-the-art manufacturing processes of our patented, unidirectional braiding process with the pure, aesthetic appearance of machine-braided carbon.

The wheelset supports athletes in a variety of situations, all triathlon distances, breakaway groups, sprints and mountainous finishings. Aerodynamics, stiffness and weight speak for themselves. Supplemented by towering hubs made by TUNE, the ÜberfliegerPro DISC impresses in terms of aerodynamics, rigidity and absolute light weight.

Specs

Application:

MSRP:

Hubs:

Axle system:

Installation width:

Decal color:

Wheel size:

Dimension (ETRTO):

Rim width inside:

Rim width outside:

Rim material:

Tire type:

Tire width:

Number of spokes:

Brake system:

Brake mount:

Rim tape:

Tubeless-system:

Weight:

Weight limit:

Tire pressure(max.):

Cassette body:

Road, Cross, Gravel

1.899,- €

Tune KillHill/ClimbHill

12mm thru axle

F: 100mm / R: 142mm

White or black

28″

17-622

17,5mm

26,5mm

Carbon

Wire-/Foldable tires

min. 23mm / max. 33mm

24 (F), 24 (R)

DISC

Centerlock

incl. 2x Schwalbe PU 18mm

Tubeless ready

from 1.390 Gr.

110 kg total weight

9 bar (23 mm),
8 bar (25 mm), 7,5 bar (28 mm)

Shimano/SRAM 10/11-speed, Campagnolo 9/10/11/12-speed or SRAM XDR

Description

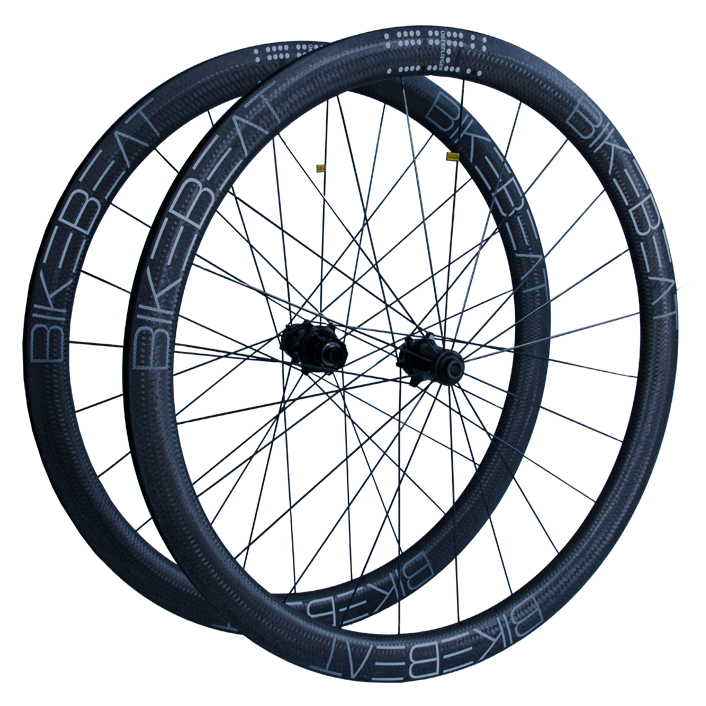

The final stage of our Überflieger DISC series. In the prototype variant, we combine the most modern manufacturing processes of our patented unidirectional braiding process with the pure, aesthetic look of machine-braided carbon. This wheelset is rounded off with one of the lightest hub variants available on the market.

The wheelset supports athletes in a variety of situations, all triathlon distances, breakaway groups, sprints and mountainous finishings. Aerodynamics, stiffness and weight speak for themselves. Supplemented by towering hubs made by TUNE, the Überflieger Pro DISC impresses in terms of aerodynamics, rigidity and absolute light weight.

Specs

Application:

MSRP:

Hubs:

Axle system:

Installation width:

Decal color:

Wheel size:

Dimension (ETRTO):

Rim width inside:

Rim width outside:

Rim material:

Tire type:

Tire width:

Number of spokes:

Brake system:

Brake mount:

Rim tape:

Tubeless-system:

Weight:

Weight limit:

Tire pressure(max.):

Cassette body:

Road, Cross, Gravel

2.099,- €

Tune Prince/Princess Ceramic

12mm thru axle

F: 100mm / R: 142mm

White or black

28″

17-622

17,5mm

26,5mm

Carbon

Wire-/Foldable tires

min. 23mm / max. 33mm

24 (F), 24 (R)

DISC

Centerlock

incl. 2x Schwalbe PU 18mm

Tubeless ready

from 1.340 Gr.

110 kg total weight

9 bar (23 mm),
8 bar (25 mm), 7,5 bar (28 mm)

Shimano/SRAM 10/11-speed, Campagnolo 9/10/11/12-speed or SRAM XDR
