Products DISC

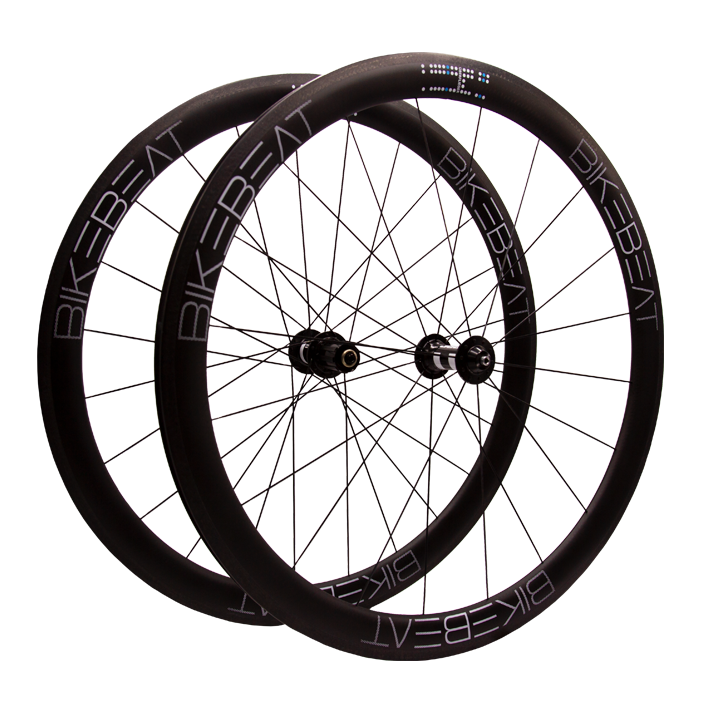

ÜBERFLIEGER DISC

Our new Überflieger DISC wheelset makes every road bike a highlight. Based on an Airbus patent for aerospace, we have further developed the process of machine braiding to use it for cycling. Our unidirectional braiding makes for a unique, non-duplicable design. The result of years of development, is a very light 45mm clincher wheelset with an outstanding price / performance ratio.

Our rims are not only developed and designed in Germany, but also 100% made in Germany. The outstanding aerodynamics, stability and highest performance values are supported by lightweight DT Swiss 240s DISC Straightpull hubs and Aero spokes from Sapim.

Application:

Road, Cross / Gravel

Decal color:

White or Black

Wheel size:

28″

Rim material:

Carbon

Tyre type:

Wire-/foldable tires

Tyre width:

min. 23mm / max. 33mm

Number of spokes:

24 (Front), 24 (Rear)

Brake system:

Disc brake

Brake mount:

Centerlock

Rim tape:

incl. 2x Schwalbe PU 18mm

Axle system:

12mm thru axle

Tubeless-System:

Tubeless ready

Weight:

ca. 1420 Gr.

Cassette body:

Shimano/SRAM 10/11-speed or
Campagnolo 9/10/11-speed

TG:

250° – This value reflects the heat resistance of the rim. More specifically, it means that the brake flank can endure up to 250 ° Celsius before the material gets tired.

Technical information

Rim

Type:
UD BikeBeat
Dimension (ETRTO):
17-622
Rim width inside:
17,7 mm
Rim width outside:
26,5 mm
Rim height:
45 mm
Rim material:
Carbon

Hubs

Typ:
DT Swiss 240s Disc Straightpull
Achssystem:
12mm thru axle
Freilauf:
Shimano/SRAM 10/11-speed or
Campagnolo 9/10/11-speed

Limits

Weight limit:
110 kg total weight (bike incl. rider)
Air pressure (max.):
9 bar (23 mm tires),
8 bar (25 mm tires),
[see recommended tire width:
7,5 bar (28 mm)]
Recommended tire width:
23-25 mm
[28mm: no sense from aerodynamic view; so we recommend 23 o 25mm tire width]

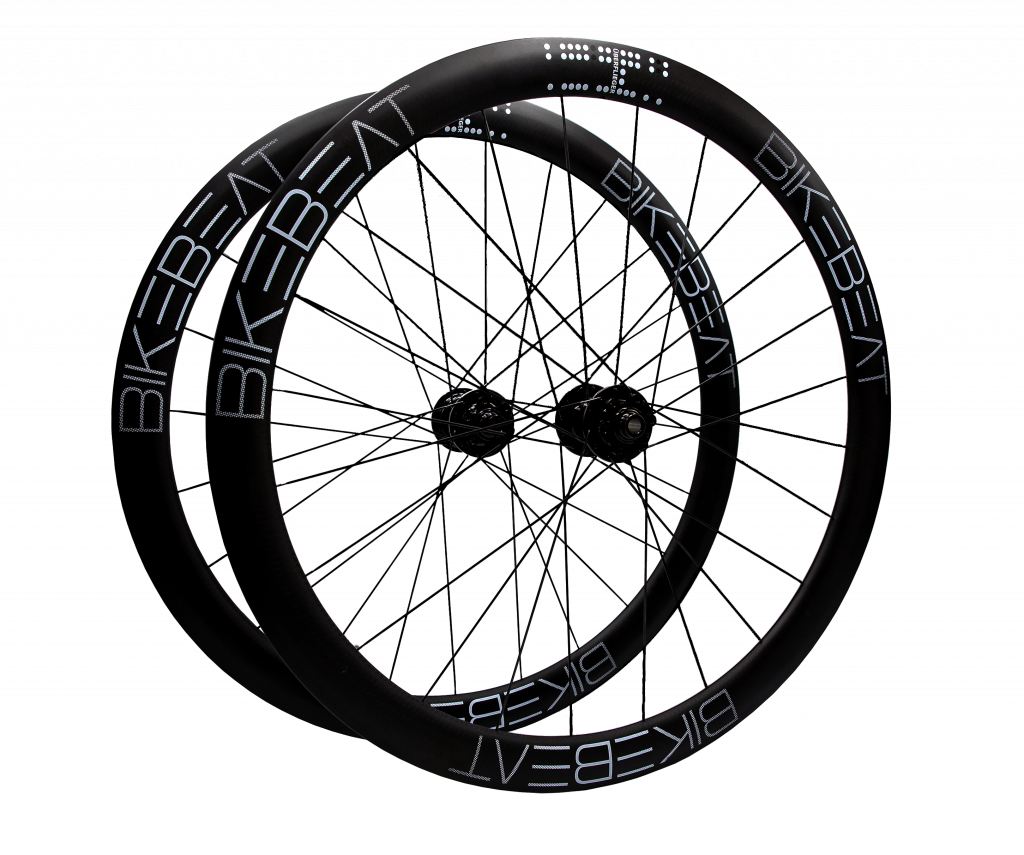

ÜBERFLIEGERPro  DISC

The advancement of the Überflieger DISC! In the Pro variant, we combine state-of-the-art manufacturing processes of our patented, unidirectional braiding process with the pure, aesthetic appearance of machine-braided carbon.

The wheelset supports athletes in a variety of situations, all triathlon distances, breakaway groups, sprints and mountainous finishings. Aerodynamics, stiffness and weight speak for themselves. Supplemented by towering hubs made by TUNE, the ÜberfliegerPro DISC impresses in terms of aerodynamics, rigidity and absolute light weight.

Application:

Road, Cross / Gravel

Decal color:

White or Black

Wheel size:

28″

Rim material:

Carbon

Tire type:

Wire-/Foldable tires

Tire width:

min. 23mm / max. 33mm

Number of spokes:

24 (Front), 24 (Rear)

Brake system:

Disc brakes

Brake mount:

Centerlock

Rim tape:

incl. 2x Schwalbe PU 18mm

Axle system:

12mm thru axle

Tubeless-System:

Tubeless ready

Weight:

ca. 1390 Gr.

Cassette body:

Shimano/SRAM 10/11-fach, Campagnolo 9/10/11-fach or SRAM XD

TG:

250° – This value reflects the heat resistance of the rim. More specifically, it means that the brake flank can endure up to 250 ° Celsius before the material gets tired.

Technical information

Rim

Type:
UD BikeBeat Pro
Dimension (ETRTO):
17-622
Rim width inside:
17,7 mm
Rim width outside:
26,5 mm
Rim height:
45 mm
Rim material:
Carbon

Hubs

Type:
TUNE KINGkong / Kong
Axle system:
12mm thru axle
Cassette body:
Shimano/SRAM 10/11-speed or
Campagnolo 9/10/11-speed

Limits

Weight limit:
110 kg total weight (bike incl. rider)
Air pressure (max.):
9 bar (23 mm tires),
8 bar (25 mm),
[see recommended tire width:
7,5 bar (28 mm)]
Recommended tire width:
23-25 mm
[28mm: no sense from aerodynamic view; so we recommend 23 o 25mm tire width]
